SC-200/200 and SC320/320 Rack and Pinion Hoist with Retractable Loading Deck and High Payload Capacity

  • SC-200/200 and SC320/320 Rack and Pinion Hoist with Retractable Loading Deck and High Payload Capacity
Lieu d'origine CHINE
Nom de marque KANGBO
Certification TUV
Numéro de modèle SC200, SC200/200, SC320, SC320/320
Quantité de commande min 1 ensemble
Prix 10000-50000 USD
Détails d'emballage En gros
Délai de livraison 30 jours après réception de l'acompte
Conditions de paiement T / t, l / c
Capacité d'approvisionnement 300 unités par mois

Contactez-moi pour des aperçus gratuits et des bons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Je ne sais pas.: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Traitement de surface Dip chaud galvanisé Type entraîné Crémaillère
Des pièces de rechange Universel et interchangeable Contrôle des motos VFC (contrôle de fréquence variable)
Hauteur de levage 495m Modularisé Conception et production
Matériau de la section de mât Acier Q355B But Transport vertical dans la construction
Production EN 60204-1:2006/A1:2009. Type de plate-forme Cage simple ou double
Mettre en évidence

rack and pinion hoist with retractable deck

,

high payload rack and pinion hoist

,

SC-200 rack and pinion hoist
Laisser un message
Description de produit

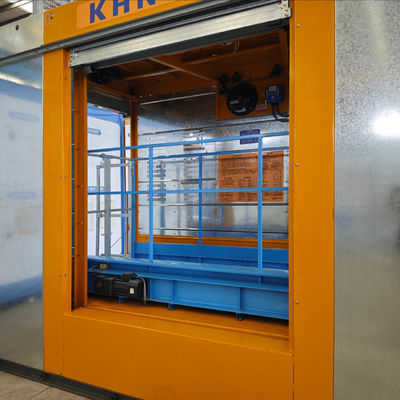

Rack-and-Pinion Construction Lift with Cage & Retractable Load Deck

Model: SC-200, SC200/200, SC320, SC320/320
Brand: KANGBO
Origin: Made in China | Certifications: CE, TÜV, ISO 9001

1. Product Snapshot
Move men, masonry and palletised materials to any floor—without changing equipment.
Our SC series rack-and-pinion hoist combines a 2000-3200kg / 25-person cage with a retractable loading deck that slides out in seconds to create a flush, 1 500 kg goods platform. One machine, maximum site efficiency.

2. Why Contractors Choose the hoists combine with loading deck
Dual-mode cage: carry personnel OR cargo on the same lift—deck retracts for safety when transporting people.
Rack-and-pinion drive: no hydraulic hoses to burst; climbs 0–63 m/min smoothly even in 55 °C heat or –20 °C frost.
495 m max. height: bolted mast sections (650 × 650 × 1.508 m, hot-dip-galvanised) let you follow the building floor-by-floor.
Over-load & over-speed protection: FC control motors + centrifugal safety device automatically engages if descent overspeed.
Tool-less assembly: captive bolts, laser-milled rack and colour-coded cables cut install time by 30 %.
LED floodlighting & interlocked doors as standard; full compliance with EN 12159 & ANSI A10.4.

3. Key Specifications
Payload (cage mode): 2000 kg / 25 persons
Payload (platform mode): 1500 kg
Lifting speed: 0–63 m/min (VFD)
Max. erection height: 495 m
Cage size: (L×W×H): 3.2 × 1.5 × 2.35 m
Retractable deck extension: 1.2 m
Mast section: 650 × 650 × 1.508 mm, galvanized
Power supply: 380–480 V / 50–60 Hz / 3-ph
Motors: IP55, frequency-control
Safety device: Centrifugal brake + overload sensor
Operating temp.: –20 °C to +55 °C
Finish: Shot-blast SA 2.5, zinc-rich primer + polyurethane top coat (any RAL)

4. Standard Configuration Includes
✓ Complete cage with retractable deck & non-slip checker plate
✓ 6 × mast sections + 1 × wall tie (first 15 m)
✓ VFD control cabinet with world famous components
✓ Landing-call buttons & floor-selector joystick
✓ Self-erecting 500 kg davit crane for mast addition
✓ Spare 1 m rack, safety device test handle & tool kit

5. Optional Upgrades
Twin-cage arrangement ( SC-200/200 )
Derated 1 000 kg cage for glass-panel transport
Custom cage lengths up to 4.2 m

6. Packaging & Shipping
Seaworthy frame + shrink wrap, 40’ HQ container fits 55 m single cage set
Lead time: 25 days (1–3 units) | 30 days (4–10 units)
Incoterms: FOB, CIF, CFR, DAP supported

7. Warranty & After-Sales
24-month or 2000 operating-hours warranty, whichever comes first
Free online commissioning & operator training via Zoom/Teams
24/7 English hot-line: +86-13950102375

8. FAQ
Q: Can the deck be retro-fitted to my existing rack-and-pinion hoist?
A: Yes—send us your cage drawing; we supply a bolt-on kit with CE declaration.
Q: Do you provide mast anchorage drawings?
A: Static & dynamic calculations stamped by a European PE are included free.
Q: What is the typical power consumption per lift cycle?
A: ≈ 0.35 kWh per 100 m travel at 1 500 kg payload—70 % less than traction hoists.
